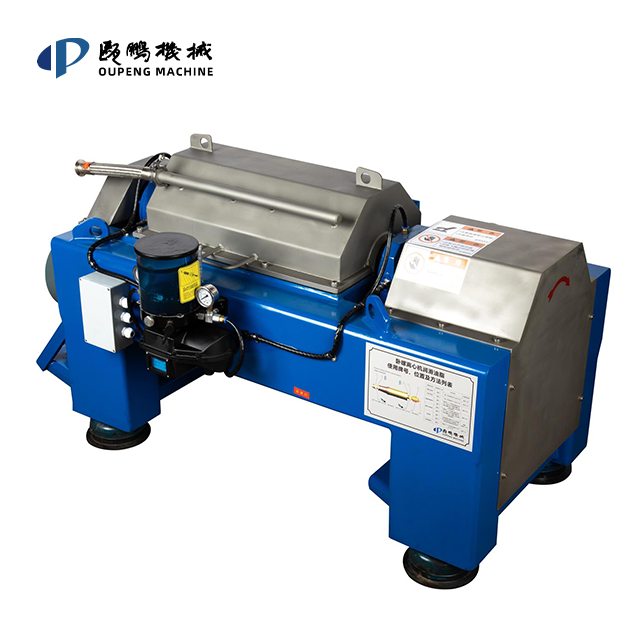

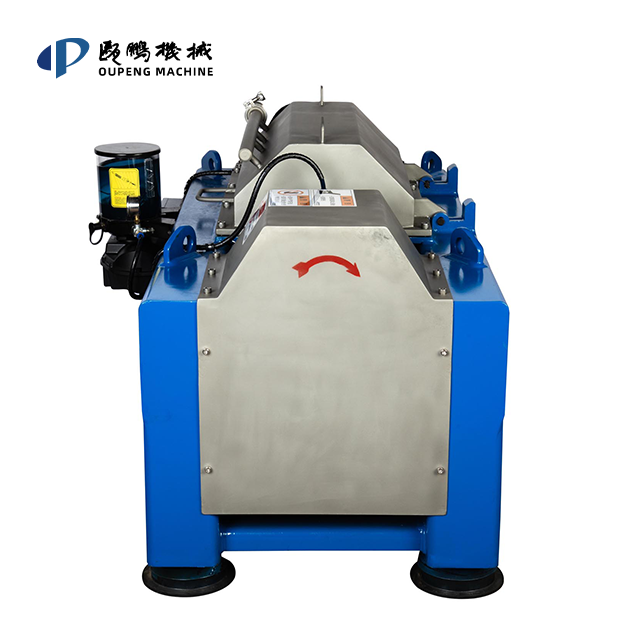

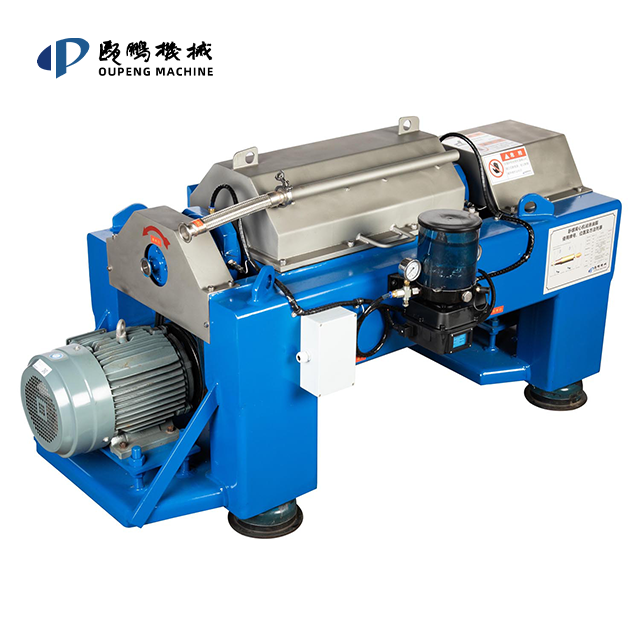

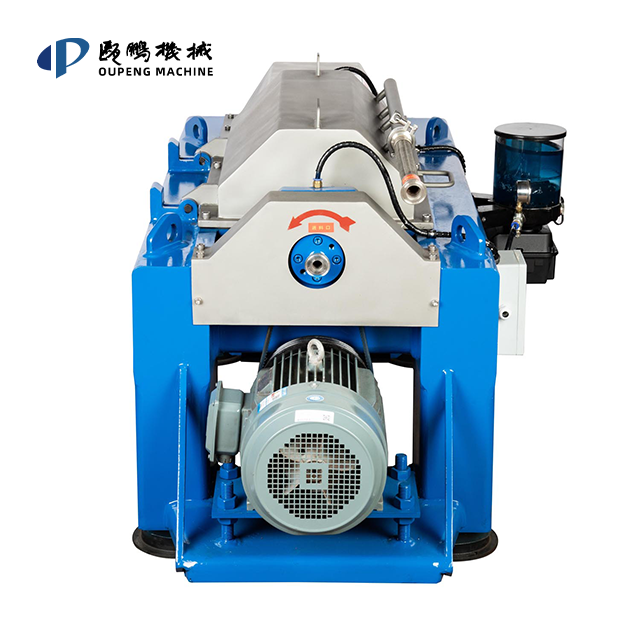

China oupeng machinery wet centrifugal classifier
For efficient classification of particles smaller than 0.8 mm
Sinking centrifugal classifiers for particle classification
Specific materials, specific design, bring accurate and error-free centrifugal classification technology.
China Oupeng Machinery CC Wet Centrifugal Classifier brings together more than 30 years of experience and expertise in the field of particle classification. These wet centrifugal classifiers are favored by our customers for their reliable operation, ultra-high efficiency and minimal maintenance.

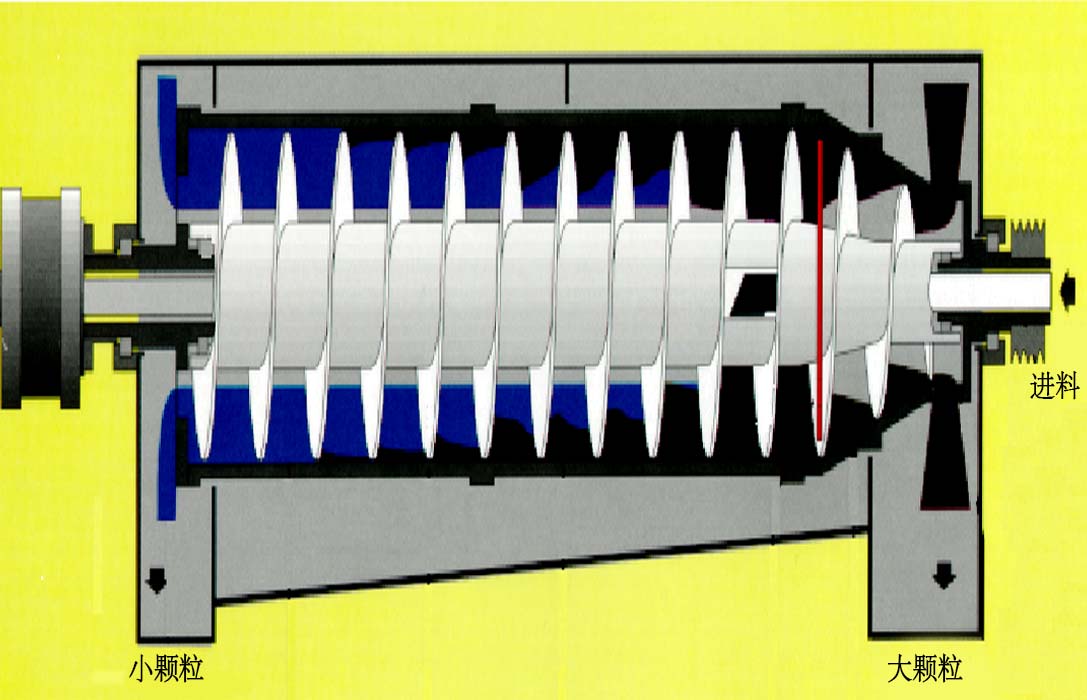

How does China Oupeng Machinery CC wet centrifugal classifier work?
Centrifugal classifiers are highly efficient classifiers that utilize the principle of centrifugal sedimentation to continuously process particles and classify different particle diameters (large particles are removed while small particles are preserved).
Therefore, this classification method requires the use of a liquid separation medium (usually water) with a specific gravity between the weights of the two particles to be separated. The larger "heavier" boring particles sink to the bottom of the container, while the smaller "lighter" material floats on the liquid.
The quality of grading depends on the structure of the equipment specificity; it improves the distribution area of particle diameter and particle specific gravity, so that the overflow material after grading ensures the average particle diameter of the particles, especially for the gap and ultra-hard wear-resistant materials are very demanding.
Product Features
Performance | |
Due to the high g-force and the unique design of the wet centrifugal classifier, it is possible to increase the quality of the product and thus the value of the end product compared to other methods. In addition, wet centrifugal classifiers allow the separation of particles with a diameter of less than 0.8 mm as well as mixtures of substances or fibers that are not suitable for static separation. This guarantees higher separation accuracy than other methods. | √Better product quality, thus increasing the value of the final product √Classification of particles smaller than 0.8 mm |
Cost saving | |
Since the particles are highly classified, the necessary labor and material resources are reduced. CC wet centrifugal classifiers require very little manpower, which saves on running costs. Lower consumption also reduces running costs. | |
Oupeng wet centrifugal classifier technical parameters | |||||
Model number | CC2 | CC3 | CC4 | CC5 | CC6 |
Bowl ID | 255mm | 360mm | 430mm | 550mm | 650mm |
Bowl speed | 4200 rpm | 3500 rpm | 3200 rpm | 2850 rpm | 2600 rpm |
Max. acceleration factor | 2500 xg | 2500 xg | 2500 xg | 2500 xg | 2500 xg |
Differential speed | 5-50rpm | 5-50rpm | 5-50rpm | 5-50rpm | 5-50rpm |
Material (that sth is made of) | All parts in contact with materials are made of high quality stainless steel. | ||||
Overall Dimension (Length X Width X Height) | 2300X925X900mm | 3200X1130X1150mm | 3500X1170X1250mm | 4200X1425X1480mm | 4900X1525X1630mm |
Weights | 1000 KG | 2500 KG | 3500 KG | 5500 KG | 8000 KG |
Bowl drive | 7.5 KW | 15 KW | 30 KW | 45 KW | 75 KW |
Scroll drive | 4 KW | 5.5 KW | 7.5 KW | 15 KW | 22 KW |
