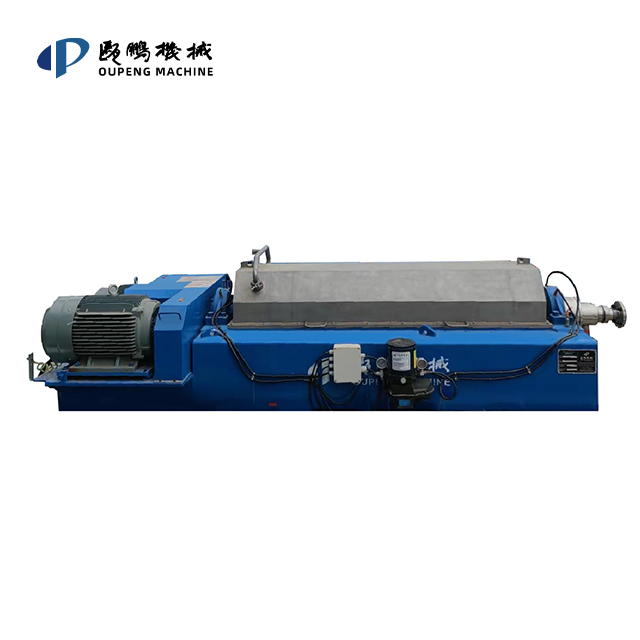

China oupeng machinery SX three-phase horizontal sedimentation centrifuge，
Decanter centrifuges for heavy liquids, light liquids and solids in one
In conventional separation processes, solids are separated from one or more liquids of different densities. However, the two are often mixed together. China Oupeng Machinery SX is definitely a very good solution. It can continuously separate three phases (solid - heavy liquid - light liquid) in one step. This makes it convincing in processes such as oily sludge treatment, starch production and oil extraction.
The SX three-phase centrifuge structure, developed by Oupeng Machinery in China more than 15 years ago, separates the three phases in a synchronized process. The prerequisites for this are that the liquids are immiscible with each other, that they have different densities and that the solids are the heaviest phase. On this basis, a specially designed pump impeller system achieves optimum separation.
Three-phase separation offers the user additional advantages: In combination with the processing steps, additional separation steps can be eliminated, resulting in significant cost savings. In addition to its high separation accuracy, the SX three-phase centrifuge is also convincing because of its ability to be used flexibly. It can be readily adapted to changing feed conditions. In addition, Oupen Machinery has proven capabilities in reliable engineering and service, from application-specific project planning and commissioning to maintenance and spare parts supply.

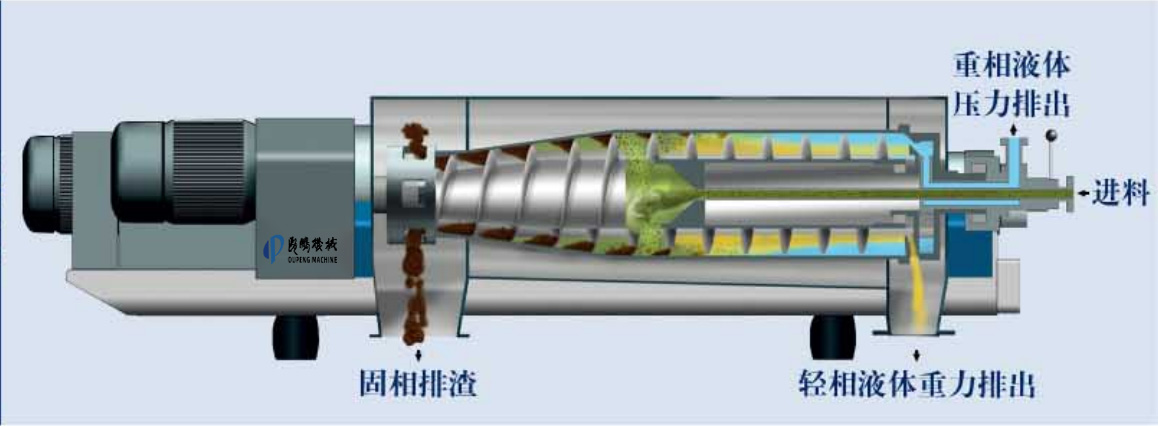

China Oupeng Machinery SX three-phase horizontal Sedimentation Centrifuge Working Principle
The major difference with the decanter centrifuge is the separation of the two-phase liquids: in the case of the SX three-phase centrifuge, the heavier liquids are discharged under pressure by means of an adjustable pump impeller. The lighter liquids are discharged by gravity. The pump impeller allows the depth of the tank to be continuously adjusted during operation, so that the feed conditions can be adjusted quickly and precisely - without having to interrupt operation.
Product Features
Performance | |
The Chinese OUPENG SX three-phase decanter centrifuge offers high economic efficiency, as further processing steps and separation steps can be eliminated by using continuous three-phase separation. The special advantage of the OUPENG SX three-phase decanter centrifuge is that the liquid phase to be separated has the highest possible purity due to the use of pump impellers. The separation process can be readily adapted to changes in the feed situation. Individually tailored decanter centrifuge spirals ensure optimum separation results. In addition, the geometry of the decanter centrifuge rotor from OUPENG Machinery is optimized for the specific application. | √Cost-effective three-phase separation √The phase to be separated has the highest possible purity due to the use of adjustable pump impellers √Flexibility to adapt to changing feed conditions Personalized and customized Decanter Screws The geometry of the decanter rotor is optimized for specific applications. |
Surety | |
Safety is at the heart of the OUPENG SX three-phase centrifuges, with their high speeds, continuous operation and diverse fields of application. Thanks to application-specific protection against wear and tear, the choice of materials and equipment according to the raw material, and global service, OUPENG offers the highest level of process safety. | Application-specific wear protection Media-based material selection and machine equipment |
| Manipulate | |
The SX three-phase decanter centrifuge design from China Oupeng Machinery is particularly easy to operate and maintain thanks to its specially optimized design for the specific application and its compact construction. For the adjustable pump impeller, the process can be automated by means of a controller. In addition, an intuitive touch screen makes control even easier. | √Compact and easy to maintain √Adjustable pump impeller allows automation √Optimal control through touch screen operating solution |
Oupeng three-phase horizontal spiral discharge sedimentation centrifuge technical parameters | |||
Model number | SX4E-4 | SX5E-4 | SX6E-4 |
Bowl ID | 430mm | 550mm | 650mm |
Bowl speed | 3500 rpm | 3100 rpm | 2850 rpm |
Max. acceleration factor | 3000 xg | 3000 xg | 3000 xg |
Differential speed | 1.5-30rpm | 1.5-30rpm | 1.5-30rpm |
Material (that sth is made of) | All parts in contact with materials are made of high quality stainless steel. | ||
Overall Dimension (Length X Width X Height) | 3500X1170X1250mm | 4200X1425X1480mm | 4900X1525X1630mm |
Weights | 3500 KG | 5500 KG | 8000 KG |
Bowl drive | 30 KW | 45 KW | 75 K |
Scroll drive | 7.5 KW | 15 KW | 22 KW |
