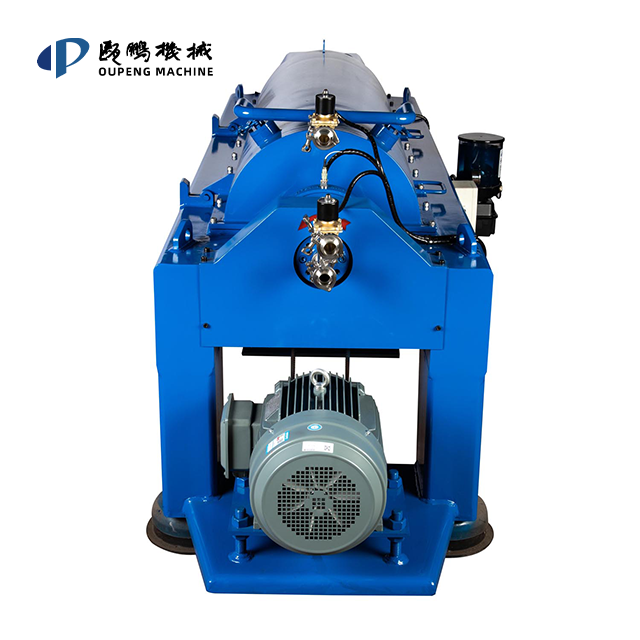

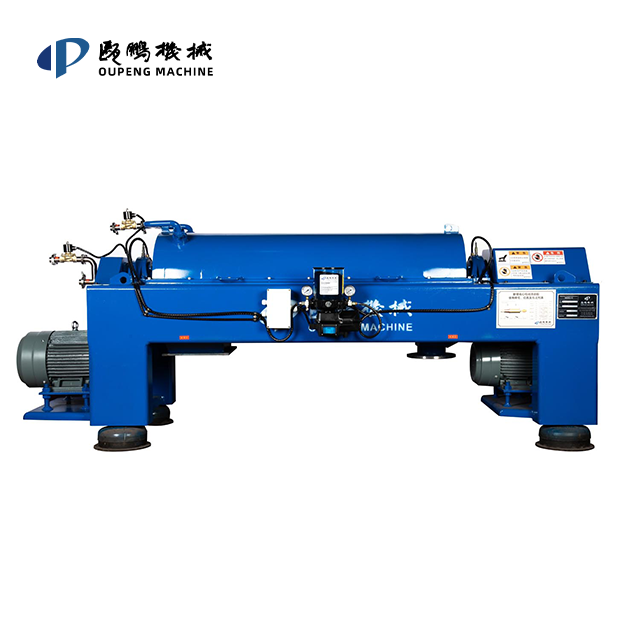

China Oupeng Machinery CHTS Continuous Dewatering Horizontal Sedimentation Centrifuge，For sludge dewatering
HTS = maximum dry matter content
Centrifuges for sludge dewatering
The cost of transportation and removal of the sewage sludge produced accounts for the bulk of the cost of a wastewater treatment plant. The lower the sludge volume, the lower the transportation and cleaning costs. Efficient sludge dewatering is the decisive criterion for this. With the CHTS model from China Oupeng Machinery, the dry matter content of the dewatered sludge is as high as possible, which leads to continuous savings in transportation and cleaning costs.
China Oupeng Machinery has more than 30 years of experience in wastewater sludge dewatering and continuous research and development, which is the foundation of CHTS. Having a wealth of experience, combined with a proven track record around the world, makes Oupeng Machinery one of the leading suppliers of mechanical separation technology. CHTS impresses with its performance, efficiency and high economy.
China oupeng machinery CHTS centrifugal dewatering machine working principle
The digested sludge is pumped from the digestion tank to a sludge centrifuge. This will dewater the sludge from 2 to 6% to 25 to 35% of the dry matter (TS) content. Dewatering in the centrifuge is accomplished by centrifugal force.
China Oupeng Machinery CHTS can be adapted to the special characteristics of sewage sludge. The centrifuge is suitable for digestive sludge dewatering as well as direct dewatering of excess sludge.
Product Features
Performance | |
China Oupeng Machinery CHTS is designed for sludge dewatering. The energy-efficient Oupeng Machinery's multi-stage planetary gear inverter drive (a winner of the 2015 China Invention, Invention Patent ZL 2015 1 0511285.X Gearbox with Automatic Torque Feedback), coupled with the decanter centrifuge's continually optimized screws, delivers dry matter content that is several percentage points higher than that of other machines. If the dry matter content is increased from 23 to 25 percent, this means that the wastewater treatment plant can reduce its sludge volume by about 8 percent. As a result, transportation and cleaning costs are also reduced by about 8 percent. In addition to the highest possible dry matter content and dewatering performance, one of the highlights of the sludge centrifuge is the power consumption and flocculant consumption. | √Maximum dry matter content √Minimum Power Consumption √Minimum flocculant consumption |
| |
Cost saving | |
The centrifuge is able to reduce operating costs due to lower flocculant consumption and electricity usage. In addition to the energy-efficient (Patent ZL 2015 1 0511285.X Gearbox with automatic torque feedback) drive unit. The decanter centrifuge does not require consumables such as filter media or filter cloths, which further reduces the cost of operation. | √ Low flocculant consumption and low energy consumption for lower operating costs √No need for consumables such as filter media, filter cloths, etc. |
Safeguard | |
Spare and wear parts for centrifuges can be replaced easily and on-site, which saves time and costs for the manufacturer. Efficient protection against wear and tear ensures that centrifuges have a long service life. | √ Efficient protection against wear and tear √ Spare and wear parts can be easily replaced on site |
Manipulate | |
Personnel costs are minimized as the CHTS decanter centrifuge from China Oupeng Machinery can be operated continuously and automatically. The sludge centrifuge automatically adapts to changes in feed and operating conditions during operation via PLC or remote monitoring. No cleaning cycles are required during the operating phase. The dewatering centrifuge is controlled by a control module equipped with a PLC, thanks to which it is easy to operate. The user interface displays all important parameters at a glance and allows easy control and automation of the plant. Our CHTS decanter centrifuges automatically adapt to changes in feed and operating conditions during operation via PLC or remote monitoring. | √Continuous and automatic operation √Automatically adapts to changes in feed and operating conditions during operation √No need for cleaning cycles during the operating phase |
Oupeng food grade horizontal sedimentation centrifuge technical parameters | |||||
model number | CHTS2-4 | CHTS3-4 | CHTS4-4 | CHTS5-4 | CHTS6-4 |
Bowl ID | 255mm | 360mm | 430mm | 550mm | 650mm |
Bowl speed | 4200 rpm | 3500 rpm | 3200 rpm | 2850 rpm | 2600 rpm |
Max. acceleration factor | 2500 xg | 2500 xg | 2500 xg | 2500 xg | 2500 xg |
Differential speed | 1.5-30rpm | 1.5-30rpm | 1.5-30rpm | 1.5-30rpm | 1.5-30rpm |
material (that sth is made of) | All parts in contact with materials are made of high quality stainless steel. | ||||
Overall Dimension (Length X Width X Height) | 2300X925X900mm | 3200X1130X1150mm | 3500X1170X1250mm | 4200X1425X1480mm | 4900X1525X1630mm |
weights | 1000 KG | 2500 KG | 3500 KG | 5500 KG | 8000 KG |
Bowl drive | 7.5 KW | 15 KW | 30 KW | 45 KW | 75 KW |
Scroll drive | 4 KW | 5.5 KW | 7.5 KW | 15 KW | 22 KW |
