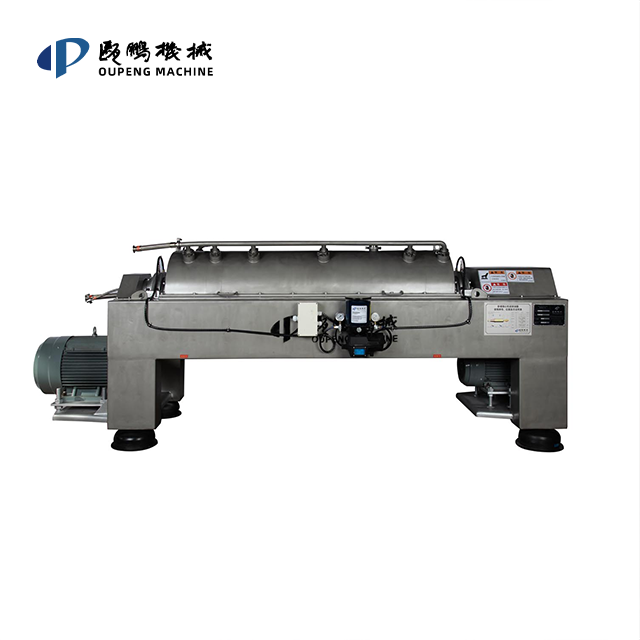

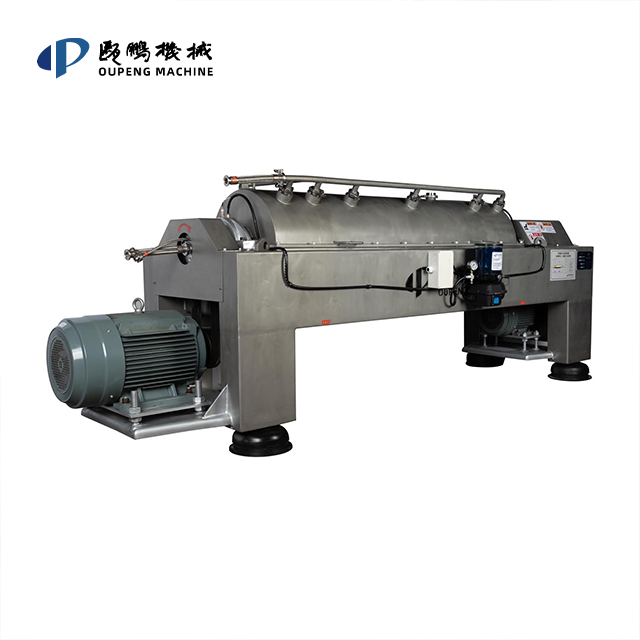

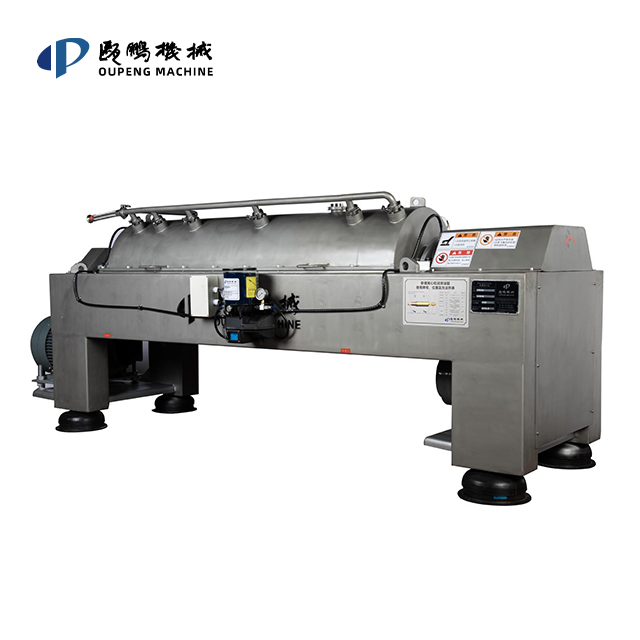

China Oupeng Machinery SZ Dual-cones Horizontal Decanter Centrifuge

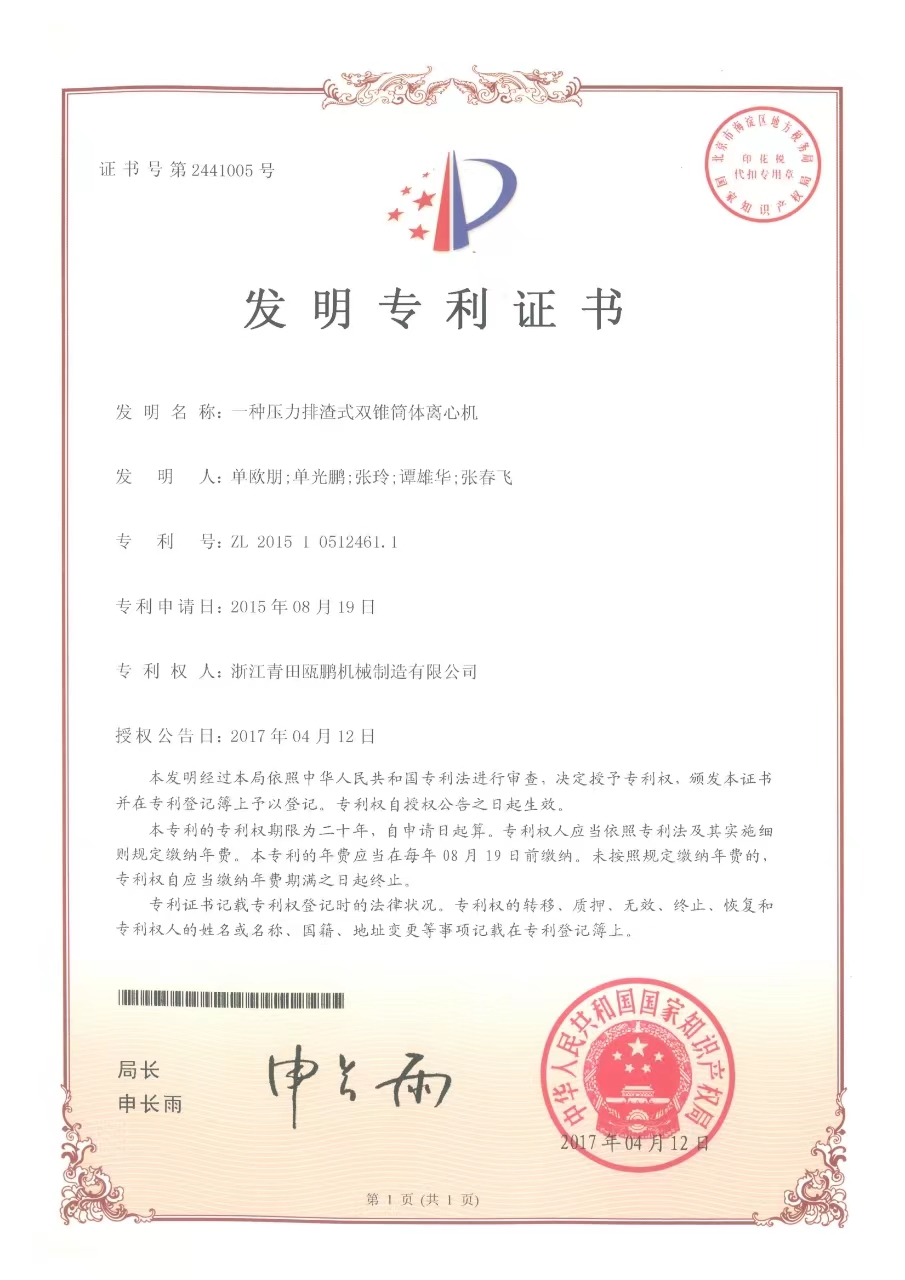

Obtained the invention patent ((Patent No. ZL 2015 1 0512461.1) technology, applicable to fine grain size, paste-like products
Adjustable impellers for optimal selectivity even with fluctuating feed volumes.
High-quality stainless steel meets stringent pharmaceutical, biotechnology and food standards.
Centrifuges for the separation of soft materials
For processing fine-grained pasty products
China Oupeng Machinery produces double cone centrifuge which combines the advantages of butterfly separator and decanter centrifuge. It is equivalent to a butterfly separator in clarifying the suspension, i.e. it is capable of providing the best clarified clear liquid. At the same time, it is capable of handling large quantities of solids in the inlet and discharging dry solids (sediment) at the discharge port, just like a decanter centrifuge.
SZ Dual-Cones Horizontal Decanter Centrifuge is specialized in centrifuges for flowable soft sediments. Oupeng machinery double cone centrifuge separates solids from liquids. It is characterized by: Separated solids include soft or even flowable sediments. Soft or flowable solids are difficult to handle well with ordinary decanter centrifuges. Only the patented OUPENG Machinery double cone centrifuge can achieve optimal results. Even with fluctuating feed quantities - due to its equipped adjustable pump impeller - optimum separation accuracy can be achieved.
China Oupeng Machinery has been producing double cone centrifuge since 2015 and got the invention patent ((Patent No. ZL 2015 1 0512461.1). We have rich experience and many well-known performance in the world. Our double cone centrifuges are known for their excellent performance, high quality and long service life.
China oupeng machinery SZ double cone centrifuge working principle

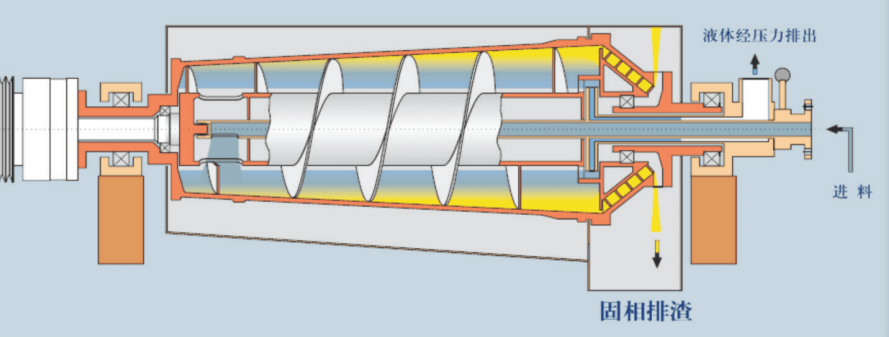

The working principle of China Oupeng Machinery double cone centrifuge is similar to that of decanter centrifuge. The rotation inside the centrifuge generates centrifugal force. The effect is to throw the heavier solid particles outward toward the rotating cylinder shell. The liquid collects inside the conveying screw. The conveying screw rotates at a different differential speed than the drum. The separated solids are conveyed to the discharge port of the double cone centrifuge.
Due to their design, double cone centrifuges are able to process materials with a high solids content in the inlet as well as decanter centrifuges. The difference with the decanter centrifuge is the nature of the mixture to be treated. Unlike the decanter centrifuge, the double cone centrifuge can also handle fine-grained pasty solids, which are difficult to discharge due to their viscosity in a conventional decanter centrifuge.
Product Features
Performance | |

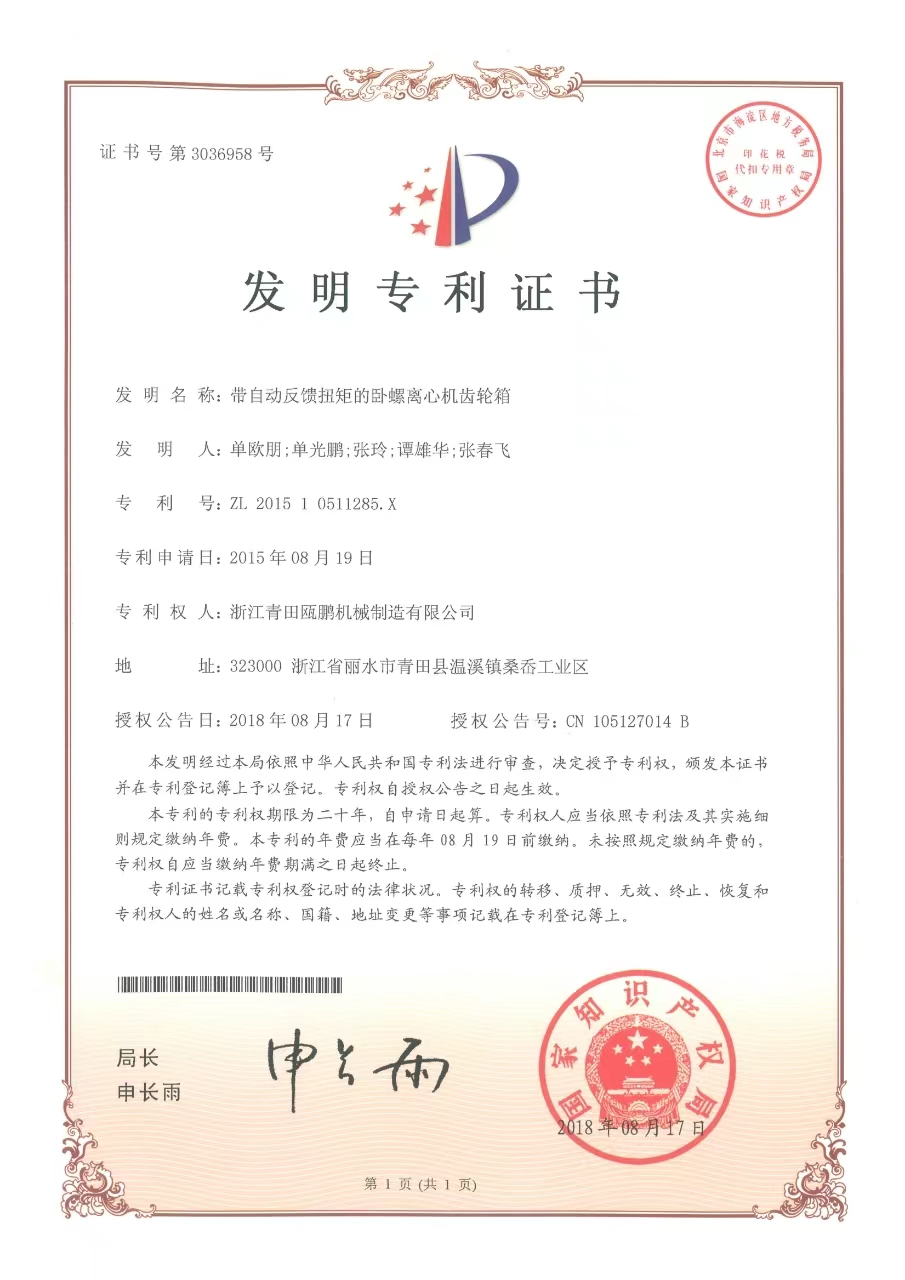

China Oupeng Machinery double cone centrifuge combines the advantages of decanter centrifuge and disk separator. Therefore, it can separate efficiently, especially those materials which are not separated well enough by decanter centrifuge and disc separator by virtue of the centrifugal force of 6,000g can realize high clarification capacity and best separation effect. At the same time, it can deal with the mixture material which is mainly solid. Thanks to the Oupeng Machinery patented multi-stage planetary gearbox (invention patent ZL 2015 1 0511285.X Gearbox with automatic torque feedback) and adjustable pump impeller, it can easily adapt to fluctuations in the amount of solids in the inlet. Ensure stable separation effect. | √High Solids in Feeder √Fully adapts to fluctuations in solids in the inlet √High separation yields and clarifications |
| |
Dexterity | |
The online adjustable centripetal pump developed by China Oupeng is able to respond quickly to changes in the incoming material during operation. Depending on the incoming material, the liquid pool in the decanter centrifuge drum can be adjusted using the adjustable centripetal disk. In this way, optimum separation results can always be obtained, even if the environment changes. In addition, the rotor and differential speed can be controlled according to the torque by means of a multi-stage planetary gear inverter drive (invention patent ZL 2015 1 0511285.X Gearbox with automatic torque feedback). Especially if the operating parameters need to be continuously adjusted, flexible speed adjustment is very important. Only in this way can a high level of economic efficiency and a stable dry matter content be realized. *** Translated with www.DeepL.com/Translator (free version) *** | √ Adjustable pump impeller for flexible adjustment of the composition of the product to be fed √Explosion-proof or hygienic centrifuges are available as an option √Torque dependent and infinitely adjustable rotor and differential speeds |
| Manipulate | |
To ensure that the machine and equipment are easy to operate, the in-line adjustable centripetal pump and the multistage planetary gear inverter drive (invention patent ZL 2015 1 0511285.X Gearbox with automatic torque feedback) can be adjusted during operation. There are several ways to automate the process in order to achieve precise adjustments for optimal separation. The operator interface is at a glance and clearly displays all the information. This reduces the operating costs of the entire plant. | √Adjustments can be made during operation √ Enables process automation Important process parameters can be seen at a glance. |
| Oupeng double cone centrifuge technical parameters | ||
Model number | SZ185E | SZ264E |
Bowl ID | 18.5 " | 26.4 " |
Bowl speed | 4750rpm | 3650rpm |
Max. acceleration factor | 6000 xg | 5000 xg |
Differential speed | 1.5-30rpm | 1.5-30rpm |
Material (that sth is made of) | All parts in contact with materials are made of high quality stainless steel. | |
Overall Dimension (Length X Width X Height) | 3100X1425X1020mm | 4740X1770X1250mm |
Weights | 3500 KG | 7500 KG |
Bowl drive | 37 KW | 75 KW |
Scroll drive | 7.5 KW | 22 KW |
