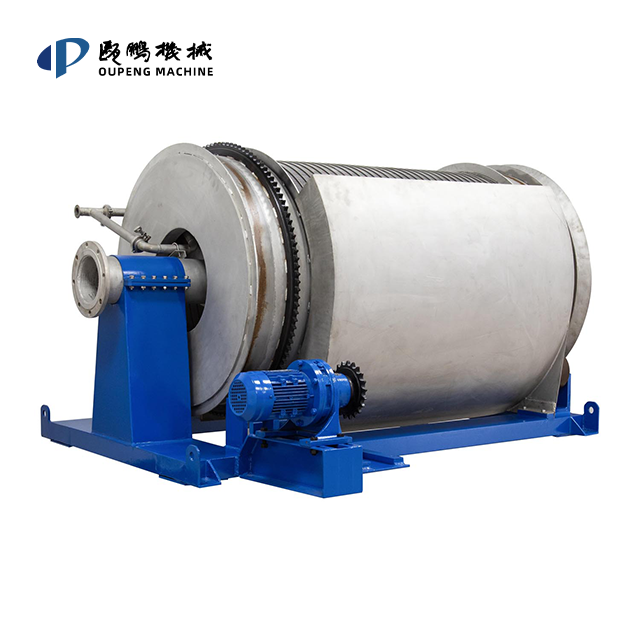

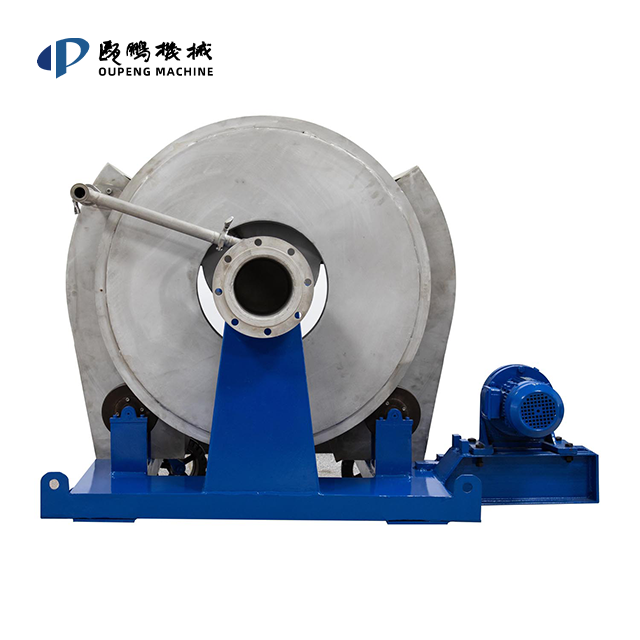

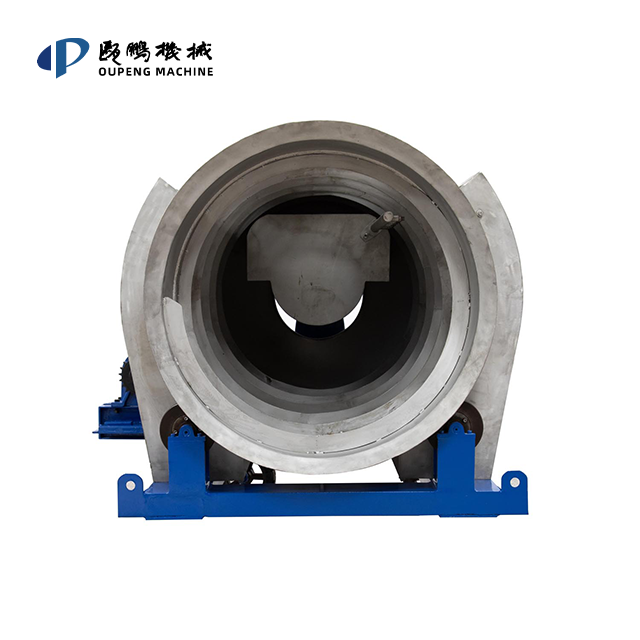

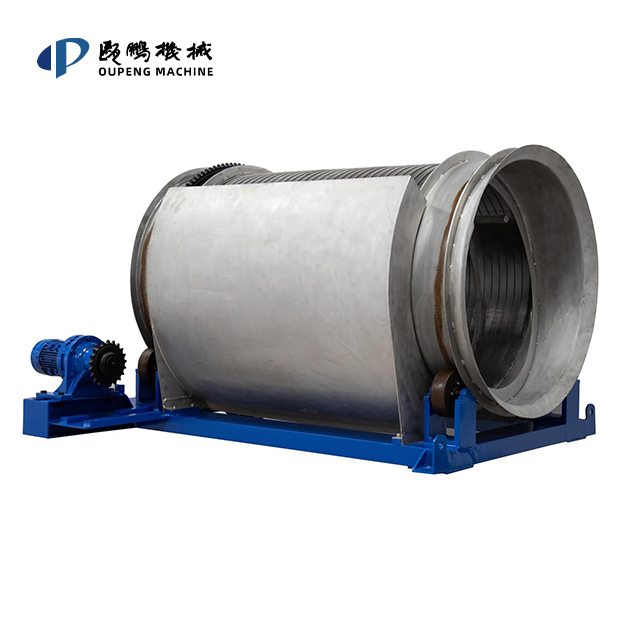

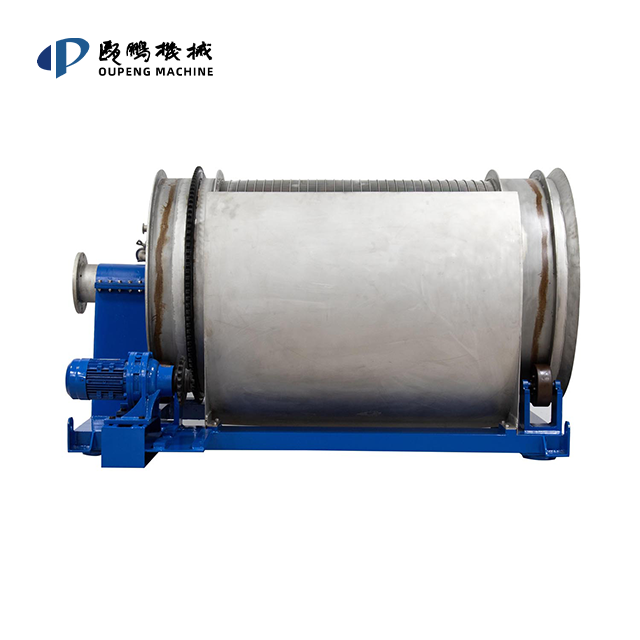

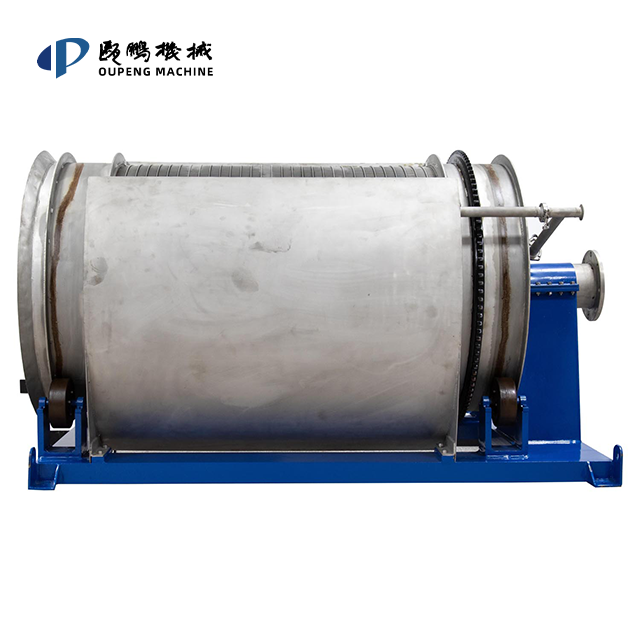

XGS Two-way Flow Rotary Fine Grating

China oupeng machinery XGS two-way flow rotary fine grating

Efficient separation of solids and liquids

Bidirectional flow rotary fine grating adopts "counter-rotating filtration method" with excellent solid-liquid separation performance, smooth operation, not easy to block, automatic slagging and other properties.

Wastewater into the drum grid, the drum and water "rotary shear" effect occurs so that the filtrate and the relative flow rate of the drum to increase, to achieve a better separation.

Better separation. The filtrate flows out from the grating slit, and the filtrate residue is automatically discharged by the scraping plate pushing the filtrate residue to the slag discharge port.

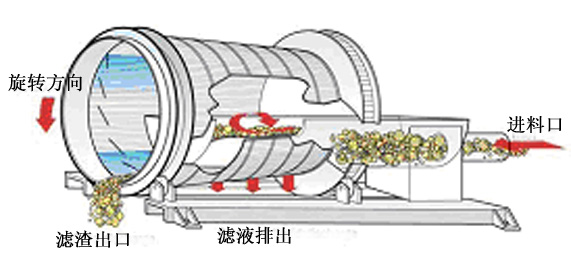

China oupeng machinery XGS bidirectional flow rotary fine grating    working principle

This machine is a horizontal drum structure, the material from the inlet into the overflow channel, in the overflow channel rotary stabilization in the steady flow of water flow to the direction of rotation of the grid network wall, the water flow and the grid for the anti-tangential relative movement, resulting in the "rotary shear" effect so that the filtrate and the relative flow rate of the drum to increase, to achieve better separation of the filtrate from the grating slit discharge The filtrate is discharged from the grating slit, and the filter residue is intercepted in the net. The filter residue which is retained in the grid is automatically discharged from the slag end under the action of the guide plate on the inner wall of the grid. Due to the reverse relative motion of the wastewater and the grating cylinder, it improves the water passage rate and reduces the adhesion of the slag to the grating mesh, thus improving the filtration and recycling efficiency.

Oupen fine grating technical characteristics:

95% of the solid slag larger than the grid gap and 50% of the solid slag equivalent to half of the grid gap can be intercepted. V-section wedge gates are available with gaps from 0.2 mm to 6 mm to meet different process requirements. V-section wedge gates are available with gaps from 0.2 mm to 6 mm to meet different process requirements. The sturdy grid bone design reduces stress concentrations in the V-section wedge grates and is more compatible with high concentration material handling.

Oupeng two-way flow rotary fine grating technical parameters
