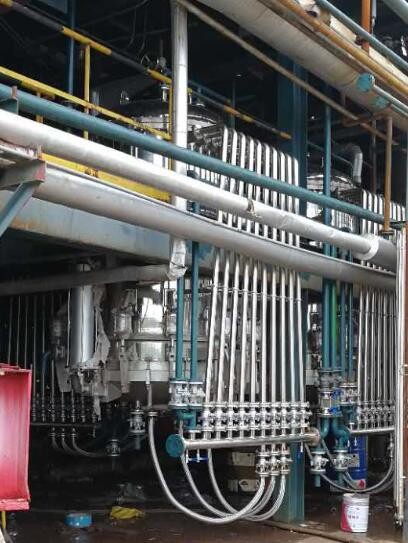

DGH type press-dry filter
Use: Filtering and drying in one , dry residue discharge.
Patent number： ZL 2012 2 0441731.6
patent number: ZL 2016 2 0275392.7

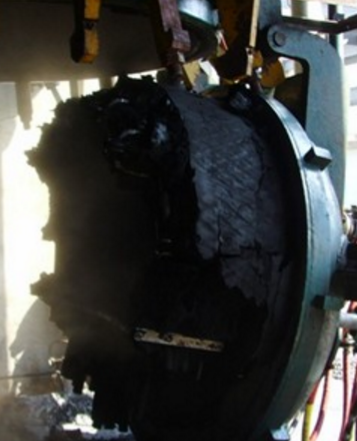

The DGH filter is a combination of filtration and drying technology realised in a single unit, designed for dry slag removal, and this integral design results in increased productivity and reduced investment.

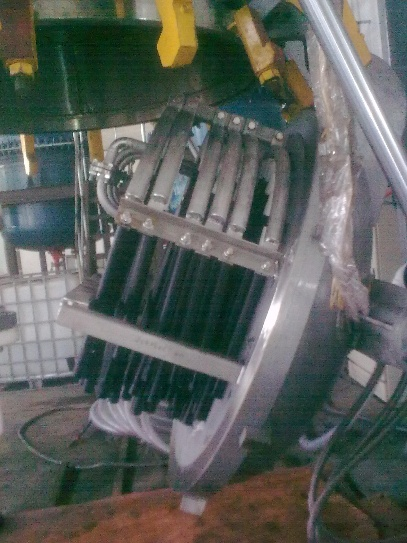

In order to recover the solid product design, DGH filters use the process of "residual liquid filtration" at the end of the filtration process. An auxiliary filtration zone is set up at the bottom of the tank, through which the residual liquid is uniformly distributed to the filtration media, and the liquid passes through the filtration element by pneumatic pressure and is discharged out of the tank.
DGH filter bottom shutter maximum diameter Φ1600mm (with Φ1600mm filter plate)
